rhino3dm

01/30/2023

• rhino3dm created by McNeel
• https://mcneel.github.io/rhino3dm/python/api/index.html
• Unfinished project? The document has less information
• Converting 2d to 3d then save .3dm
• It has less function for building detailed modeling
• Unsupporting python 3.11

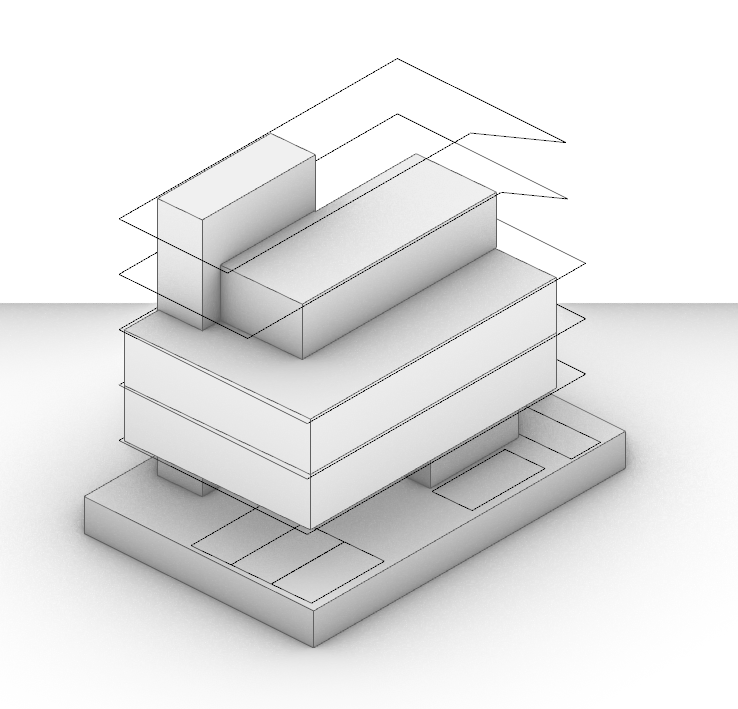

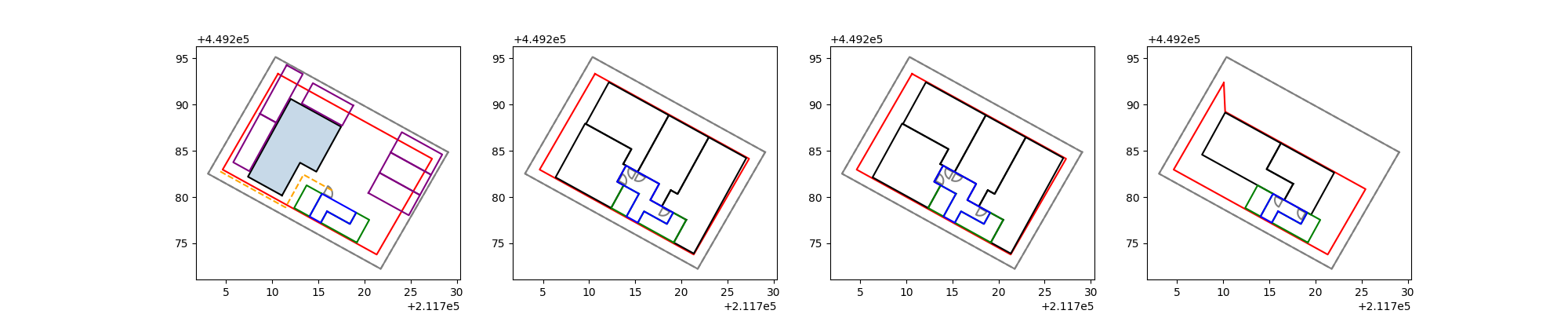

• Testing legal_geom, floors_geom, core_geom, parking_geom of the below result from Landbook engine


• Code
• 💾 zzz.3dm

    model = File3dm()

    plot_geom = wkt.loads(result_bldg["plot_geom"])
    plot_geom_points = [Point3d(x, y, 0) for x, y in plot_geom.boundary.coords]
    plot_geom_curve = Curve.CreateControlPointCurve(plot_geom_points, degree=1)
    plot_geom_extrusion = Extrusion.Create(plot_geom_curve, -2, True)
    model.Objects.AddExtrusion(plot_geom_extrusion)

    model.Write("zzz.3dm", 6)  # file name, rhino version

---
